    • A TLED solution for your application

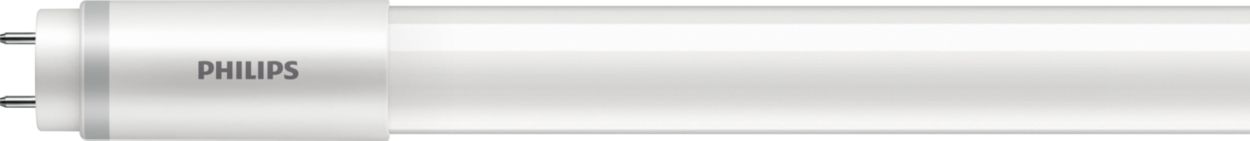

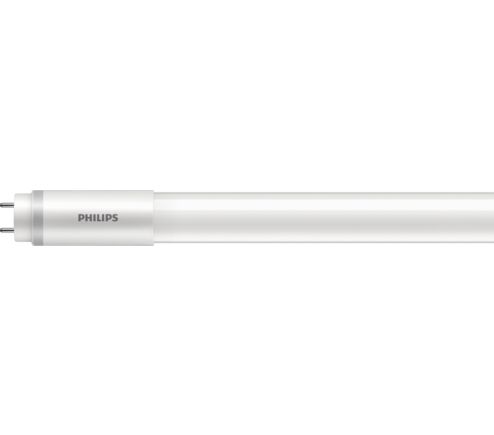

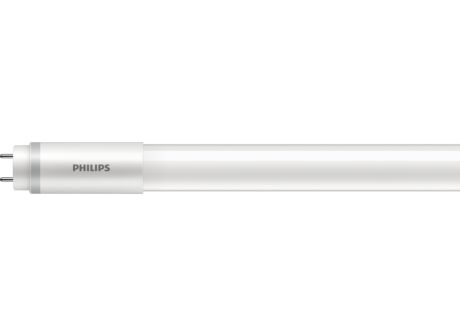

      15T8/COR/48-850/MF21/G/120-347V 25/1
      LED
      15T8/COR/48-850/MF21/G/120-347V 25/1
      T8

      15T8/COR/48-850/MF21/G/120-347V 25/1

      Downloads

      Spec Sheet
      Size:938.1 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Factor (Fraction)
    0.9
    Line Frequency
    50 to 60 Hz
    Starting Time (Nom)
    0.5 s
    Power Consumption
    15 W
    Voltage (Nom)
    120-347 V
    Warm-up time to 60% light
    0.5 s
    Input Frequency
    50 to 60 Hz
    Product Data
    Numerator - Quantity Per Pack
    1
    Order product name
    15T8/COR/48-850/MF21/G/120-347V 25/1
    Net weight
    0.220 kg
    Numerator - Packs per outer box
    25
    EAN/UPC - Case
    50046677579307
    Order code
    579300
    Full product name
    15T8/COR/48-850/MF21/G/120-347V 25/1
    Material number (12NC)
    929003523504
    Approval and Application
    Energy Saving Product
    Yes
    Approval Marks
    RoHS compliance
    UL certificate
    DLC compliance
    Controls and Dimming
    Dimmable
    Limited
    General Information
    Lighting Technology
    LED
    EU RoHS compliant
    Yes
    Brand
    Philips
    Cap-Base
    G13  [Medium Bi-Pin Fluorescent]
    Nominal lifetime
    50,000 hour(s)
    Switching Cycle
    50,000
    Mechanical and Housing
    Bulb Material
    Glass
    Product Length
    1,200 mm
    Bulb Finish
    Frosted
    Bulb Shape
    Tube, double-ended
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    70 °C
    Light Technical
    Color rendering index (CRI)
    80
    Luminous Efficacy (rated) (Nom)
    140.00 lm/W
    Color Designation
    Daylight
    Color Consistency
    <5
    Beam Angle (Nom)
    240 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Luminous Flux
    2,100 lumen
    Correlated Color Temperature (Nom)
    5000 K
    Color Code
    850  [CCT of 5000K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Medium Bi-Pin Fluorescent Tube, double-ended Frosted
    Medium Bi-Pin Fluorescent Tube, double-ended Frosted
    G13
    G13
    Performance Diagrams
    Lumen Maintenance Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Lumen Maintenance Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Lumen Maintenance Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Lumen Maintenance Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Life Expectancy Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Life Expectancy Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Life Expectancy Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Life Expectancy Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Life Expectancy Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Life Expectancy Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Spectral Power Distribution Colour - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Light Distribution Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Light Distribution Diagram - 15T8/COR/48-850/MF21/G/120-347V 25/1
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 15T8/COR/48-850/MF21/G/120-347V 25/1 IES 21.2 kB
