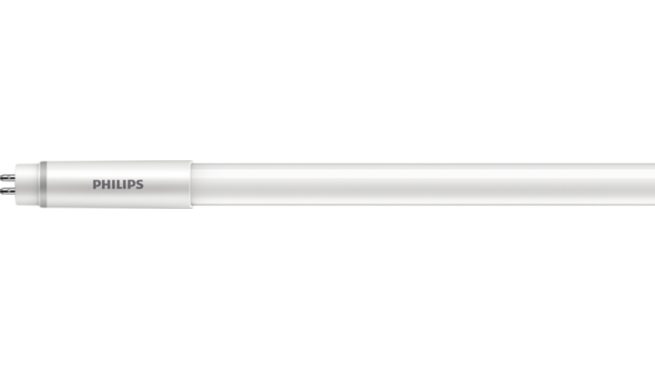

    • High Performance LED replacements for conventional T5 lamps

      25T5HO/COR/46-835/MF33/G 25/1
      LED
      25T5HO/COR/46-835/MF33/G 25/1
      T5

      25T5HO/COR/46-835/MF33/G 25/1

      Downloads

      Spec Sheet
      Size:888.3 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Factor (Fraction)
    0.9
    Line Frequency
    50 to 60 Hz
    Starting Time (Nom)
    0.5 s
    Power Consumption
    25 W
    Voltage (Nom)
    120-277 V
    Warm-up time to 60% light
    0.5 s
    Input Frequency
    50 to 60 Hz
    Product Data
    Numerator - Quantity Per Pack
    1
    Order product name
    25T5HO/COR/46-835/MF33/G 25/1
    Net weight
    0.151 kg
    Numerator - Packs per outer box
    25
    EAN/UPC - Case
    50046677576238
    Order code
    576231
    Full product name
    25T5HO/COR/46-835/MF33/G 25/1
    Material number (12NC)
    929003122404
    Approval and Application
    Energy Saving Product
    Yes
    Approval Marks
    RoHS compliance
    UL certificate
    DLC compliance
    Controls and Dimming
    Dimmable
    Limited
    General Information
    Lighting Technology
    LED
    EU RoHS compliant
    Yes
    Cap-Base
    G5  [G5]
    Brand
    Philips
    Nominal lifetime
    50,000 hour(s)
    Switching Cycle
    50,000
    Mechanical and Housing
    Bulb Material
    Glass
    Product Length
    1,200 mm
    Bulb Finish
    Frosted
    Bulb Shape
    Tube, double-ended
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    75 °C
    Light Technical
    Color Designation
    White (WH)
    Color rendering index (CRI)
    80
    Luminous Efficacy (rated) (Nom)
    132.00 lm/W
    Color Consistency
    <6
    Beam Angle (Nom)
    200 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Luminous Flux
    3,300 lumen
    Correlated Color Temperature (Nom)
    3500 K
    Color Code
    835  [CCT of 3500K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     G5 Tube, double-ended Frosted
    G5 Tube, double-ended Frosted
    G5
    G5
    Performance Diagrams
    Lumen Maintenance Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Lumen Maintenance Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Life Expectancy Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Life Expectancy Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Life Expectancy Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Life Expectancy Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Life Expectancy Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Life Expectancy Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - 25T5HO/COR/46-835/MF33/G 25/1
    Spectral Power Distribution Colour - 25T5HO/COR/46-835/MF33/G 25/1
    Light Distribution Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Light Distribution Diagram - 25T5HO/COR/46-835/MF33/G 25/1
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES IES File - 25T5HO/COR/46-835/MF33/G 25/1 IES 21.1 kB
