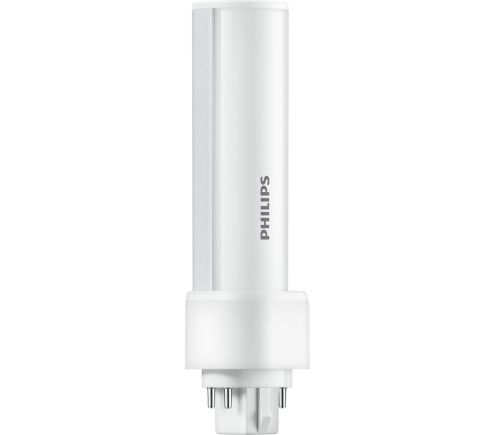

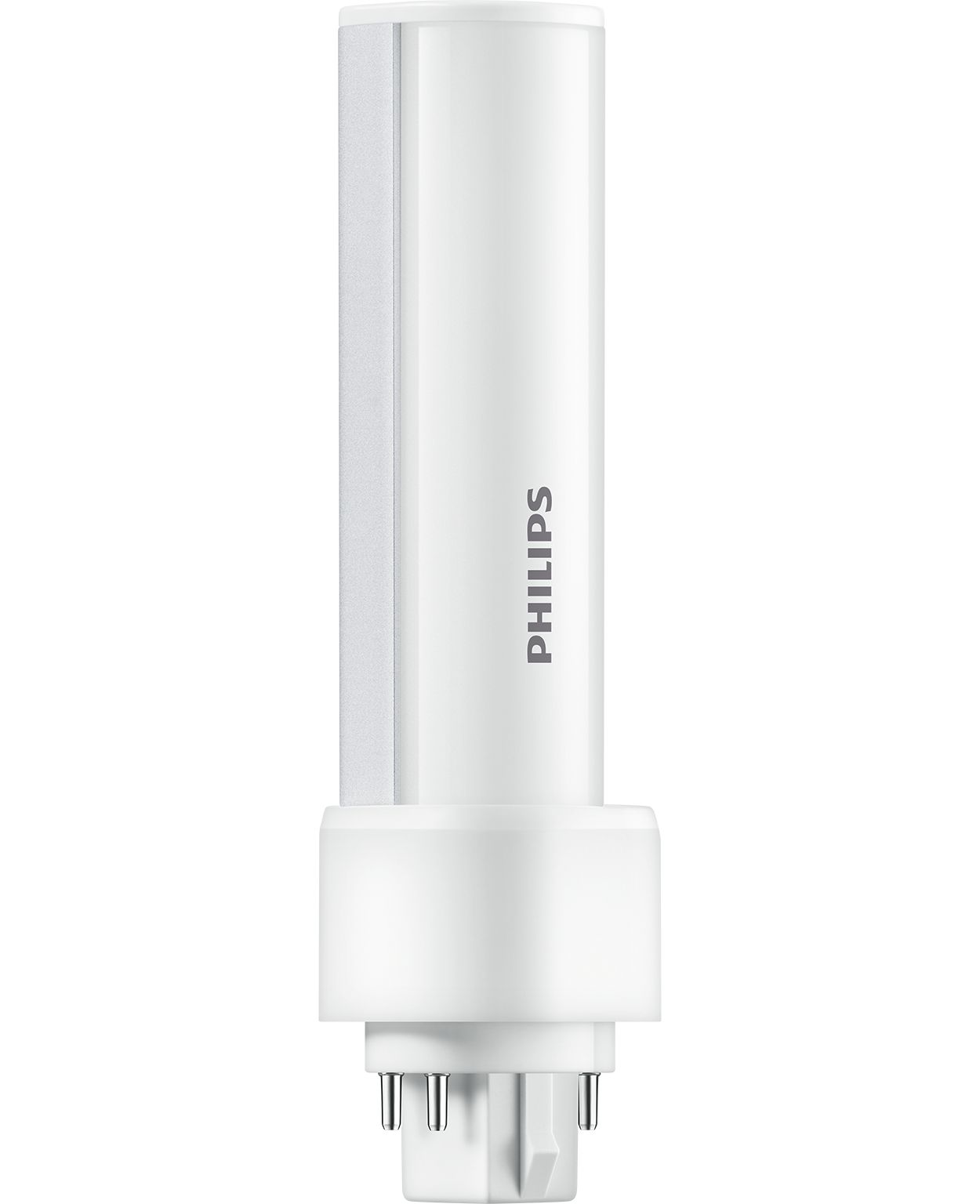

5.5PL-C/LED/13H/830/IF5/P/4P 20/1

Specifications Show all

Operating and Electrical

Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s
Wattage Equivalent	13 W
Line Frequency	25000-100000 Hz
Power Consumption	5.5 W
Input Frequency	25000-100000 Hz
Voltage (Nom)	14-60 V
Warm-up time to 60% light	0.5 s

Approval and Application

Energy Saving Product	Yes
Energy Consumption kWh/1000 h	- kWh
EU RoHS compliant	Yes
Approval Marks	RoHS compliance	UL certificate

Product Data

Full product name	5.5PL-C/LED/13H/830/IF5/P/4P 20/1
Numerator - Quantity Per Pack	1
Order product name	5.5PL-C/LED/13H/830/IF5/P/4P 20/1
Numerator - Packs per outer box	20
Order code	532408
EAN/UPC - Case	50046677532401
Material number (12NC)	929001885404

Controls and Dimming

Dimmable

Yes

General Information

Lighting Technology	LED
Cap-Base	G24Q  [G24q]
Nominal lifetime	50,000 hour(s)
Switching Cycle	50,000

Mechanical and Housing

Bulb Finish	Frosted
Bulb Material	Plastic
Product Length	140 mm
Bulb Shape	Tube, single-ended

Temperature

Ambient temperature range	-20 °C to 45 °C
T-Case Maximum (Nom)	75 °C

Light Technical

Color Designation	White (WH)
Color rendering index (CRI)	82
Luminous Efficacy (rated) (Nom)	100.00 lm/W
Color Consistency	<6
Beam Angle (Nom)	150 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Luminous Flux	550 lumen
Correlated Color Temperature (Nom)	3000 K
Color Code	830  [CCT of 3000K]
