    • Philips Glass HID lamps offer a simple & short-payback LED solution to HID replacements and can be used in both indoor and outdoor applications.

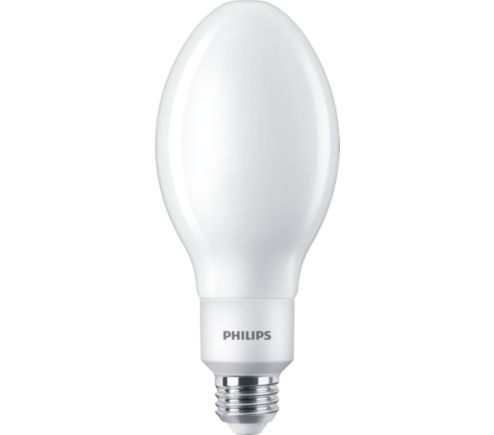

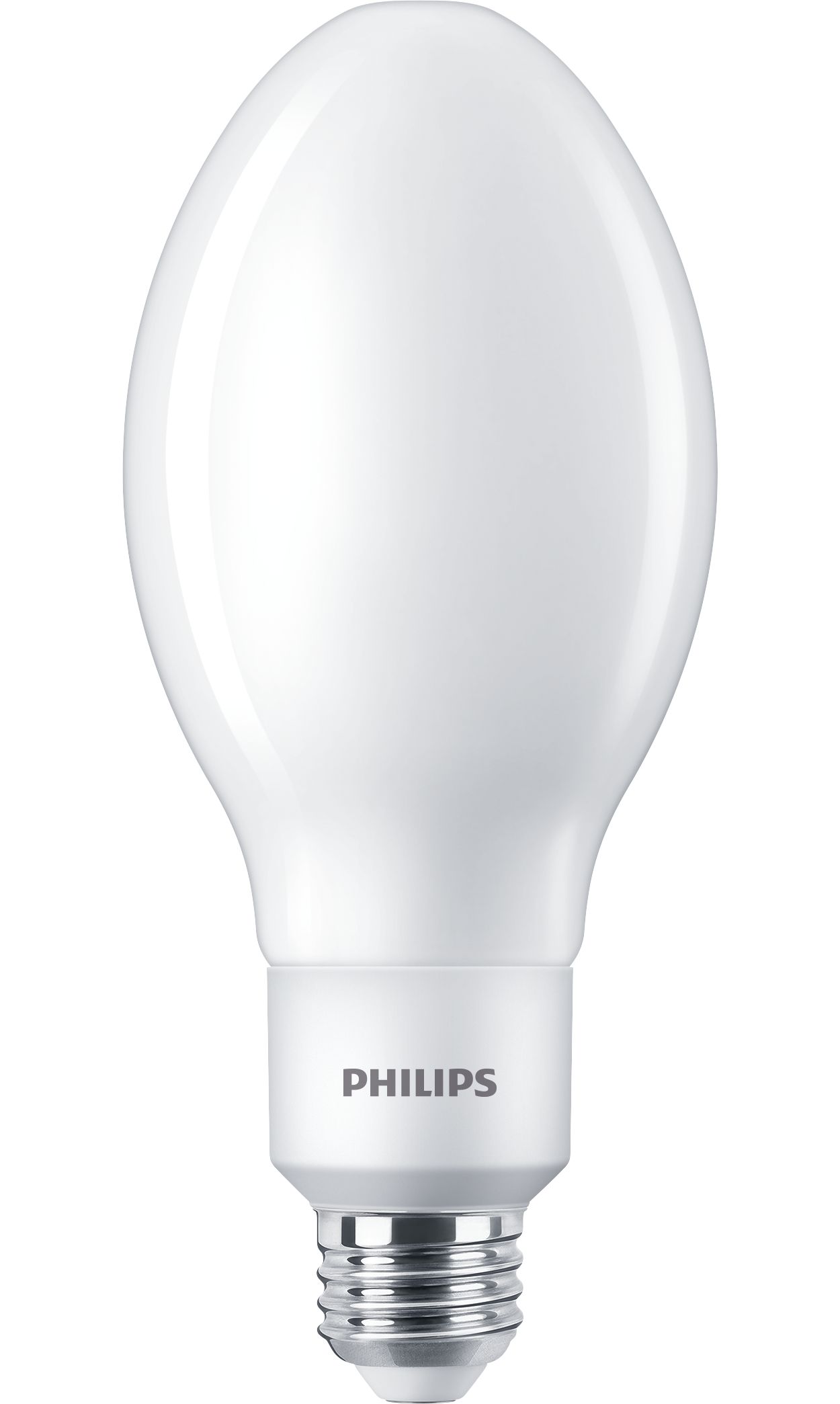

      19GC/LED/840/ND E26 BB 6/1
      LED
      19GC/LED/840/ND E26 BB 6/1
      LED Glass HID lamps

      19GC/LED/840/ND E26 BB 6/1

      Downloads

      Spec Sheet
      Size:940.9 kB

      See all downloads

    Specifications Show all

    Operating and Electrical
    Power Factor (Fraction)
    0.9
    Starting Time (Nom)
    0.5 s
    Wattage Equivalent
    100 W
    Line Frequency
    50 to 60 Hz
    Power Consumption
    19 W
    Input Frequency
    50 to 60 Hz
    Voltage (Nom)
    120-277 V
    Warm-up time to 60% light
    0.5 s
    Lamp Current (Nom)
    176 mA
    Approval and Application
    EU RoHS compliant
    Yes
    Product Data
    Full product name
    19GC/LED/840/ND E26 BB 6/1
    Numerator - Quantity Per Pack
    1
    Order product name
    19GC/LED/840/ND E26 BB 6/1
    Numerator - Packs per outer box
    6
    EAN/UPC - Case
    50046677578850
    Order code
    578856
    Material number (12NC)
    929003507804
    Controls and Dimming
    Dimmable
    No
    General Information
    Lighting Technology
    LED
    Cap-Base
    E26  [Single Contact Medium Screw]
    Switching Cycle
    15,000
    Nominal lifetime
    25,000 hour(s)
    Mechanical and Housing
    Bulb Finish
    Frosted
    Bulb Material
    Glass
    Bulb Shape
    ED75  [ED 75mm]
    Temperature
    Ambient temperature range
    -20 °C to 45 °C
    T-Case Maximum (Nom)
    54.8 °C
    Light Technical
    Color Designation
    Cool White (CW)
    Luminous Efficacy (rated) (Nom)
    157.00 lm/W
    Color rendering index (CRI)
    80
    Color Consistency
    <6
    Beam Angle (Nom)
    300 degree(s)
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Luminous Flux
    3,000 lumen
    Correlated Color Temperature (Nom)
    4000 K
    Color Code
    840  [CCT of 4000K]

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Single Contact Medium Screw ED 75mm Frosted
    Single Contact Medium Screw ED 75mm Frosted
    E26
    E26
    Performance Diagrams
    Lumen Maintenance Diagram - 19GC/LED/840/ND E26 BB 6/1
    Lumen Maintenance Diagram - 19GC/LED/840/ND E26 BB 6/1
    Life Expectancy Diagram - 19GC/LED/840/ND E26 BB 6/1
    Life Expectancy Diagram - 19GC/LED/840/ND E26 BB 6/1
    Photometrics
    General uniform lighting
    General uniform lighting
    Spectral Power Distribution Colour - 19GC/LED/840/ND E26 BB 6/1
    Spectral Power Distribution Colour - 19GC/LED/840/ND E26 BB 6/1
    Light Distribution Diagram - 19GC/LED/840/ND E26 BB 6/1
    Light Distribution Diagram - 19GC/LED/840/ND E26 BB 6/1
