    • Energy saving elegance that gives a beautiful sparkle of light

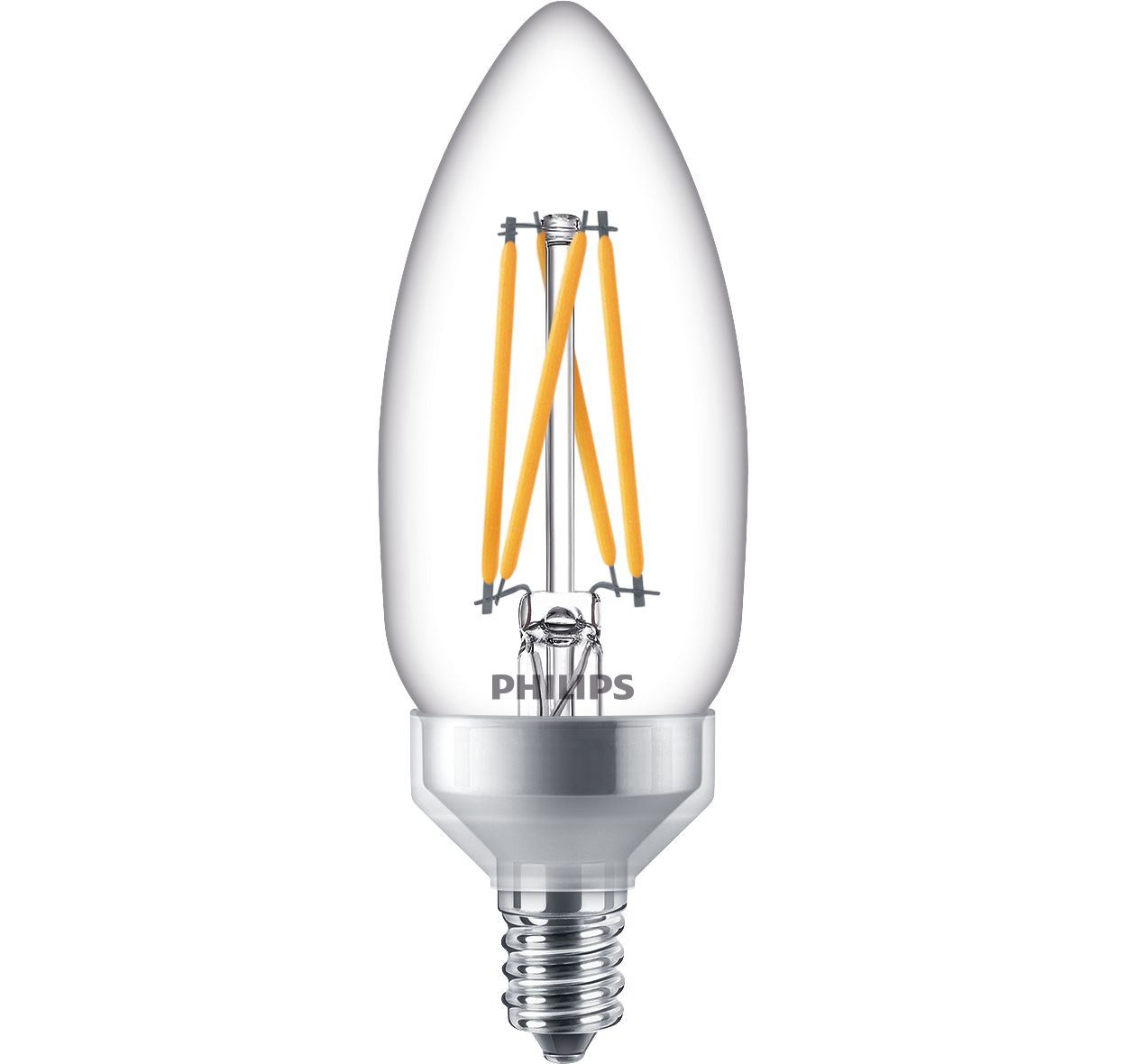

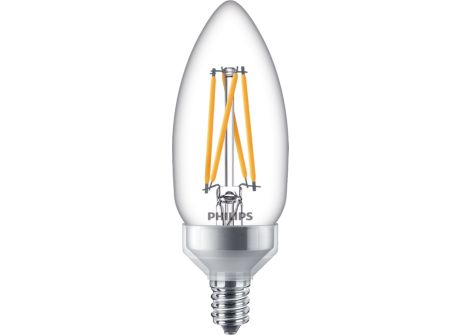

      5.5B11/PER/927-922/CL/G/E12/WGX 1FB T20
      LED
      5.5B11/PER/927-922/CL/G/E12/WGX 1FB T20
      LED B11

      5.5B11/PER/927-922/CL/G/E12/WGX 1FB T20

      Order code: 549337

      Downloads

      Spec Sheet
      Size:719.1 kB

      See all downloads

    Specifications Show all

    General information
    Cap-Base
    E12  [ Candelabra Screw]
    EU RoHS compliant
    Yes
    Nominal Lifetime (Nom)
    15000 h
    Switching Cycle
    20000X
    Technical Type
    5.5-60W
    Light technical
    Color Code
    927-922  [ CCT of 2700K-2200K]
    Luminous Flux (Nom)
    500 lm
    Color Designation
    Warm Glow(WG)
    Correlated Color Temperature (Nom)
    - K
    Luminous Efficacy (rated) (Nom)
    90.00 lm/W
    Color Consistency
    <4
    Color Rendering Index (Nom)
    90
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and electrical
    Input Frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    5.5 W
    Lamp Current (Nom)
    60 mA
    Wattage Equivalent
    60 W
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Power Factor (Nom)
    0.75
    Voltage (Nom)
    120 V
    Temperature
    T-Case Maximum (Nom)
    60 °C
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Bulb Finish
    Clear
    Bulb Material
    Glass
    Bulb Shape
    B11  [ B 35mm]
    Approval and application
    Energy Consumption kWh/1000 h
    - kWh
    Energy Certifications
    Energy Star
    Product data
    Order product name
    5.5B11/PER/927-922/CL/G/E12/WGX 1FB T20
    EAN/UPC - Product
    046677549336
    Order code
    549337
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    929002204504
    Net Weight (Piece)
    0.020 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     Candelabra Screw B 35mm Clear
    Candelabra Screw B 35mm Clear
    E12
    E12
    Performance Diagrams
    Lumen Maintenance Diagram
    Lumen Maintenance Diagram
    Life Expectancy Diagram
    Life Expectancy Diagram
    Photometrics
    LEDbulb 5.5W E12 B11 927 CL
    LEDbulb 5.5W E12 B11 927 CL
    LEDbulb 927 CL-POC
    LEDbulb 927 CL-POC
    LEDbulb E12 E26 BA11 B11 927 CL-LDD
    LEDbulb E12 E26 BA11 B11 927 CL-LDD
    Downloads
    Leaflets
    Green Data
    Visuals
    Photometry/BIM Files
    • IES LEDbulb 5.5W E12 B11 927 CL IES 831 B
