| Cap-Base | E39
[ Single Contact Mogul Screw] |
| Operating Position | Universal
[ Universal] |
| Main Application | General Lighting (G)
|
| Life to 50% Failures (Nom) | 12000
h
|
| ANSI Code HID | M47/E
|
| Footnotes HID 1 | Electrically insulated support for bulb may be required, especially in horizontal and nearly horizontal operating positions. (359)
|
| Footnotes HID 2 | Requires a ballast specified or approved for Philips metal halide lamps, or one that is designed to operate all popular brands of metal halide lamps. 1000W types will operate from H36 conventional lag type ballast for Mercury Vapor lamps at ambient temperatures of 50 degrees F or higher. 1000W types must not be operated at 1500W. (377)
|
| Footnotes HID 3 | Rated life: Vertical +/- 15 degrees. Other positions 75% of vertical life. (385)
|
| Footnotes HID 4 | Vertical lumens. Horizontal lumens 6%–10% lower. (393)
|
| Color Code | 640
[ CCT of 4000K] |
| Luminous Flux (Rated) (Nom) | 110000
lm
|
| Color Designation | Cool White (CW)
|
| Lumen Maintenance - 40% Life | 65
%
|
| Design Mean Lumens | 71500
lm
|
| Chromaticity Coordinate X (Nom) | 0.385
|
| Chromaticity Coordinate Y (Nom) | 0.390
|
| Correlated Color Temperature (Nom) | 4000
K
|
| Luminous Efficacy (rated) (Nom) | 110
lm/W
|
| Color Rendering Index (Nom) | 65
|
| Lamp Current (Nom) | 4.1
A
|
| Ignition Supply Voltage (Min) | 440
V
|
| Re-Ignition Time (Min) (Max) | 15
min
|
| Ignition Time (Max) | 120
s
|
| Voltage (Nom) | 263
V
|
| Bulb Finish | Clear
|
| Cap-Base Information | Nic/Brass
[ Nickel/Brass Base] |
| Bulb Material | Hard Glass
|

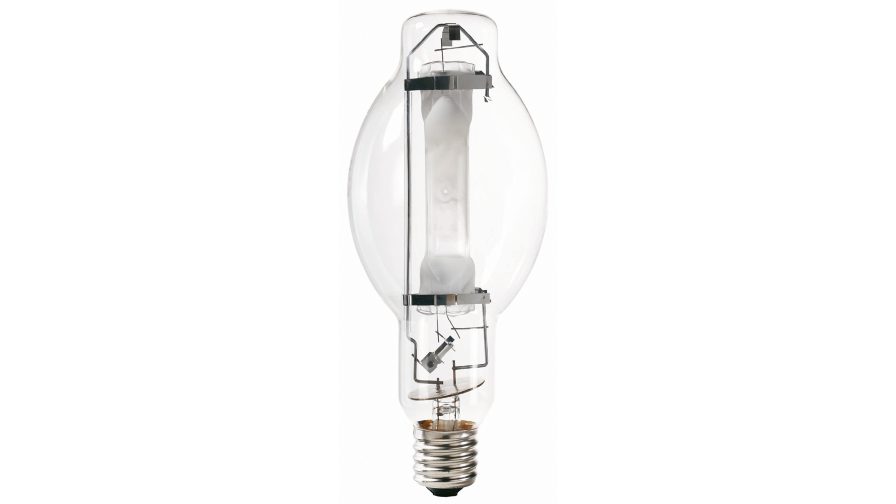

| Bulb Shape | BT37
[ BT37] |
| Energy Saving Product | Not Applicable
|
| Picogram Per Lumen Hour | 176
pg/lm.h
|
| Mercury (Hg) Content (Nom) | 151.0
mg
|
| Pet (Niosh) (Nom) | 164
h/500lx
|
| Damage Factor D/fc (Nom) | 0.53
|
| Bulb Temperature (Max) | 450
°C
|
| Cap-Base Temperature (Max) | 250
°C
|
| Order product name | MH1000/U/BT37 6PK
|
| EAN/UPC - Product | 046677321505
|
| Order code | 321505
|
| Numerator - Quantity Per Pack | 1
|
| Numerator - Packs per outer box | 6
|
| Material Nr. (12NC) | 928601179701
|
| Copy Net Weight (Piece) | 0.001
kg
|
