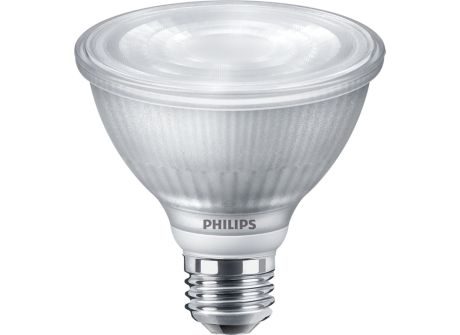

8.5PAR30S/LED/930/F25/DIM/GULW/T20 6/1FB

Specifications Show all

Operating and Electrical

Power Factor (Fraction)	0.9
Starting Time (Nom)	0.5 s
Wattage Equivalent	75 W
Line Frequency	50 to 60 Hz
Power Consumption	8.5 W
Input Frequency	50 to 60 Hz
Voltage (Nom)	120 V
Warm-up time to 60% light	0.5 s
Lamp Current (Nom)	80 mA

Approval and Application

Suitable For Accent Lighting	Yes
EU RoHS compliant	Yes
Energy Certifications	Energy Star

Product Data

Full product name	8.5PAR30S/LED/930/F25/DIM/GULW/T20 6/1FB
Numerator - Quantity Per Pack	1
Order product name	8.5PAR30S/LED/930/F25/DIM/GULW/T20 6/1FB
Numerator - Packs per outer box	6
EAN/UPC - Case	50046677568011
Order code	568014
Material number (12NC)	929003027804

Controls and Dimming

Dimmable

Only with specific dimmers

General Information

Lighting Technology	LED
Cap-Base	E26  [Single Contact Medium Screw]
Switching Cycle	25,000
Nominal lifetime	25,000 hour(s)

Mechanical and Housing

Bulb Finish	Clear
Bulb Material	Glass
Bulb Shape	PAR30S  [PAR 3.75 inch/95mm Short]

Temperature

T-Case Maximum (Nom)

70 °C

Light Technical

Luminous Intensity (Nom)	3,300 cd
Luminous Efficacy (rated) (Nom)	100.00 lm/W
Color Designation	White (WH)
Color rendering index (CRI)	90
Color Consistency	<4
Beam Angle (Nom)	25 degree(s)
LLMF At End Of Nominal Lifetime (Nom)	70 %
Luminous Flux	850 lumen
Correlated Color Temperature (Nom)	3000 K
Color Code	930  [CCT of 3000K]
